The Standard for areliable High Precision Miniature Coil factory for Hearing Aids Solution

Miniature coils/High Precision coil made with ultra-fine wire winding are quickly growing in popularity in the medical device industry and other high sensetive/precision requirements device.

The use of ultra-fine wire makes it possible to create smaller and more accurate computer assisted surgery and medical device navigation technologies for intervention or tracking. These smaller technologies  are:

• Less invasive or implantable

• Safer

• More precise

• Capable of enhanced sensing

As one might anticipate, the precise winding, handling and manufacturing of wire so small and delicate that it is invisible to the human eye requires significant technical expertise. Even the smallest of technical missteps can create significant performance issues.

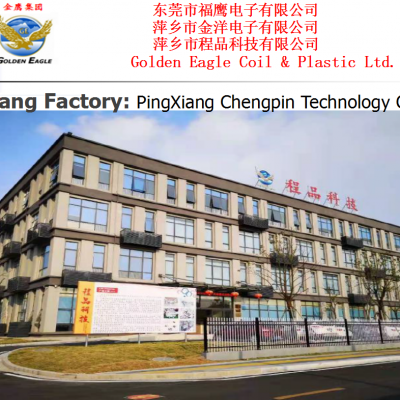

ChengPin Factory is one of the factory who can operate under the microscope

To identify a miniature coil supplier who offers the very latest in ultra-fine wire capabilities for maximum design flexibility while also meeting the strict performance parameters required to ensure success with these extremely delicate components – be sure to identify companies who provide each of the four key features

finding a supplier that can suit all of a medical device manufacturer’s needs can be significant to reduce time to market and save costs.

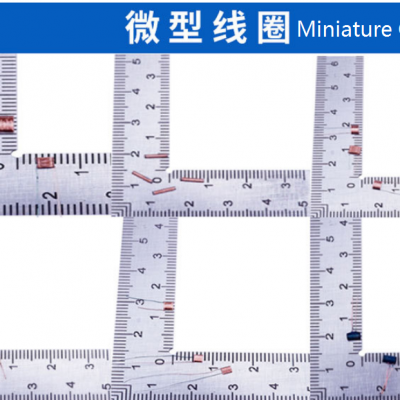

1:56-58 AWG Wire Expertise

Chengpin can produce small inductance coil and componets assembly to 0.5mm,has the unique winding technology,use the enameled wire dimention: OD0.0119(AWG56)

2:Quality-Focus: Experience, Facilities and Processes

ChengPin has more than 400 advanced  equipment and machine

Japan Auto Air Coil Winding Machine

Japan Six Spindle Auto Winding Machine

Auto-Producing Line for transformers

Servo Tensioner Imported from Japan

With over 25 years on the filed since founded 2003,contious  to focus on research and development,design and manufacture electronic componets.

with lot of experience on associated Expertise,cooperated with many professional clients.

Certification: Passed IATF16149,ISO14000,ISO9000 AND OTHER RELATED CERFIFICATION

Extensive Capabilities and Value Added Services

• Testing

• Full range of electrical tests for optimal quality and performance including resistance, dielectric, phase, inductance testing.

• HAVE OWN IINDEPENDT COMPLETE INDUSTRY LEADING LABORATORY EQUIPMENT,

• rAW MATERIAL INCOMING INSPECTION,PRODUCTS FEATURE FIINISHED PRODUCTS TESTING,LIFE SAFETY SYSTEM,ul SAFETY

• x-ray fluorescence, Cold and hot shock experient, the vibration test, draop test, PCT high-pressure accelerated aging test

• two dimensional image measurements,

• combustion flame retardant experiment.

•

• Range of Product Options

• A wide range of termination and connection options including surface mount / PCB, wire to wire and wire to cable.

• Multiple primary wire and jacket filar materials including ETFE, PFA, FEP, PEEK, Polyethylene, and Polyurethane

• Helically wound micro-gauge coils for superior flexibility, allowing multiple paths for cameras, ablations, fluids, air, etc.

• These diverse options should be accompanied by significant stock on hand for rapid prototyping in order to speed time to market.

• Value Added Services

• The ability to reduce costs and streamline supply chains by incorporating miniature coil design, assembly and packaging into a single supplier. This requires in-depth expertise of the entire production process from material selection to completed component integration for optimized supply chains and manufacturing performance.

• IF you are find the suitable supplier for your high requirements precision miniature coil,pls feel free to contact with us
